Jump straight to the right section:
- No sound from the speakers?
- Only one speaker works.
- DJM/Mixer isn't coming on.
- Signal is coming out to the Master channel on one side only.
- If the Pioneer mixer is experiencing unusual behavior, freezes, or software glitches
- Crossfader not working
- FX (Sound/Colour) is not working
-
No sound from the speakers?
Make sure they're showing the power light or turn them on at the back and at the wall switch. Ensure all top dials on each channel of the DJM are set to LINE and the BALANCE and MASTER VOL knobs are set to the middle position. More info in this quick guide.
-
Only one speaker works.

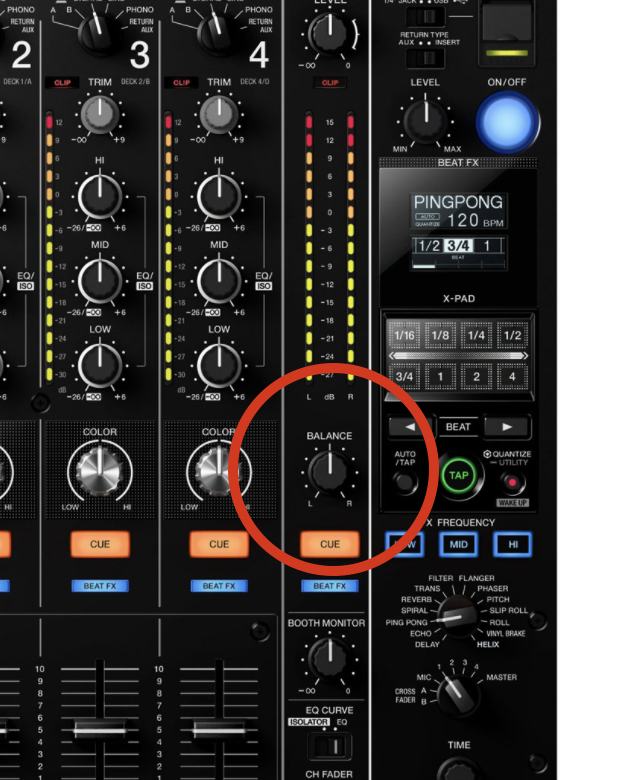

Make sure the BALANCE knob is set to the middle position. Click here for more info.
-
The DJM won't turn on.
Sometimes the DJ mixer looks off, despite we switched it on at the back, but it's only in Sleep Mode. If you switch it on and it shows a small red light on the right hand side, press that red light ("Wake Up" button) to exit Sleep Mode and turn on the mixer.
-
Signal is coming out to the Master channel on one side only.
When this happens there could be for two reasons:- You are playing music from your laptop using only 1 USB cable. This isn't possible, as our set up is all interconnected. You can only use your laptop using 3 USB cables. More info here.

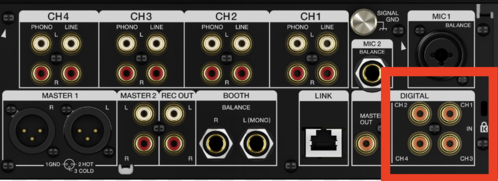

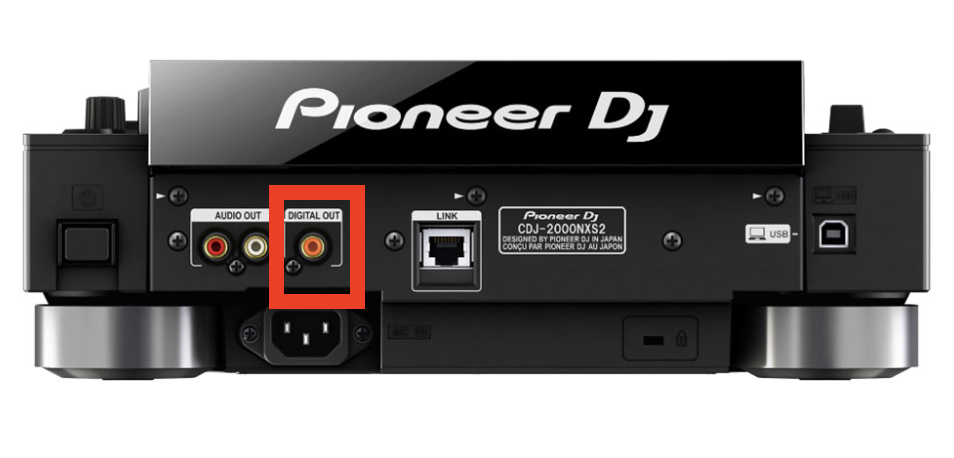

- The RCA cables at the back of the DJM aren't fully plugged in OR they aren't plugged into the LINE ports OR one end (red or white) isn't part of the same cable which is carrying signal from the CDJ. One last option could be that one end of the RCA cable is faulty. If this happens, the decks can connect digitally. Take the working side of the cable and connect one end to digital output on the CDJ and the other to digital input on the back of DJM - then don't forget to switch from line to digital on the top of the channel.
-
If the Pioneer mixer is experiencing unusual behavior, freezes, or software glitches that are not resolved through other troubleshooting methods it might need a reset. To return to default settings:
-
While pressing the [QUANTIZE (UTILITY, WAKE UP)] buttons, press the [POWER] button.
[FACTORY RESET] mode is displayed. - Press the [BEAT c, d] button. Select [YES].
- Press the [TAP] button. Enter the setting value.
- Press [POWER] button
-
While pressing the [QUANTIZE (UTILITY, WAKE UP)] buttons, press the [POWER] button.
- Crossfader is not working
Make sure that each channel is set to 'A' or 'B' if you would like to use the crossfader to switch between the output of each CDJ. -
FX (Sound/Colour) is not working

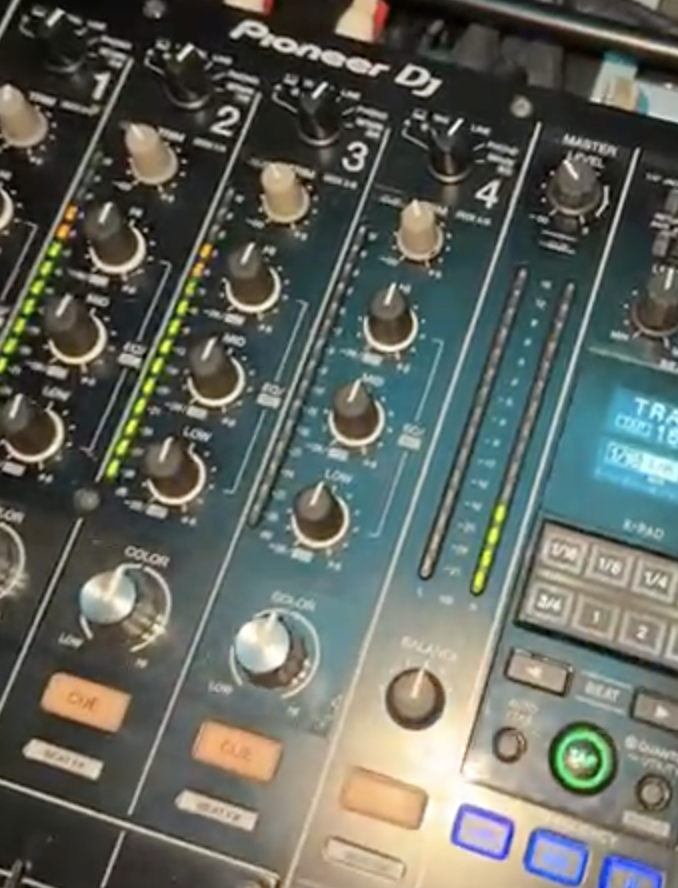

Make sure you have one of the 6 buttons of the colour effects pressed on the left (see below). If none of them are selected, turning the knob won't affect the sound. It is also important that the parameter knob is not all the way to the left, as this knob modulates how strong the effects will be. If it is all the way to the left, then the FX will be set to the minimum value. If it is to the right, this would be the maximum value of FX.
