Arturia Minifuse 4 Troubleshooting

How to fix common issues with the Arturia Minifuse 4 found in Recording Standard rooms

Volume Knob Not Responding or No Sound

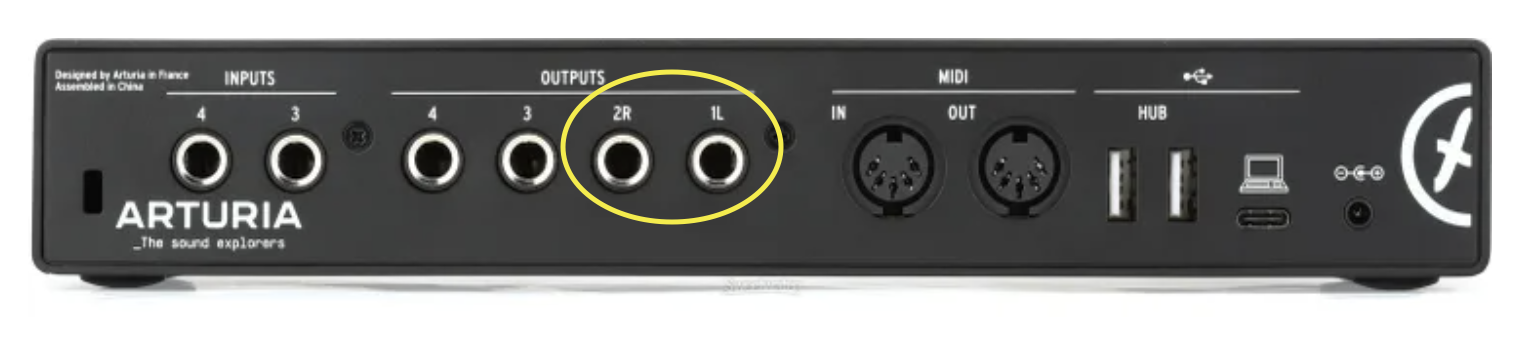

Ensure the speaker cables are plugged in to OUTPUTS 1L and 2R, otherwise the volume knob will not respond. If no sound is playing from the speakers, make sure they both have a power light on the front and are selected as the Output in your Laptop Settings and Recording Software (DAW)

Minifuse 4 Speaker Cables.png

Clicks and Pops

If you experience clicks and pops in your projects, try increasing the buffer size in your host application or the audio driver.

Latency Issues

Latency is a small delay and it's a direct byproduct of sample rate and buffer size settings, so adjusting these settings in your host application or the audio driver will have an impact on latency. For more information on how to change these settings in your DAW, please see this support article from Minifuse: HERE
-If the Direct Monitoring button is pressed on the Interface, you'll need to turn off monitoring for the recording channel in your DAW to prevent an echo through the speakers or headphones.

Headphones 2 Not Working

  1. Download Minifuse Control Center https://www.arturia.com/support/downloads-manuals/product/minifuse-4

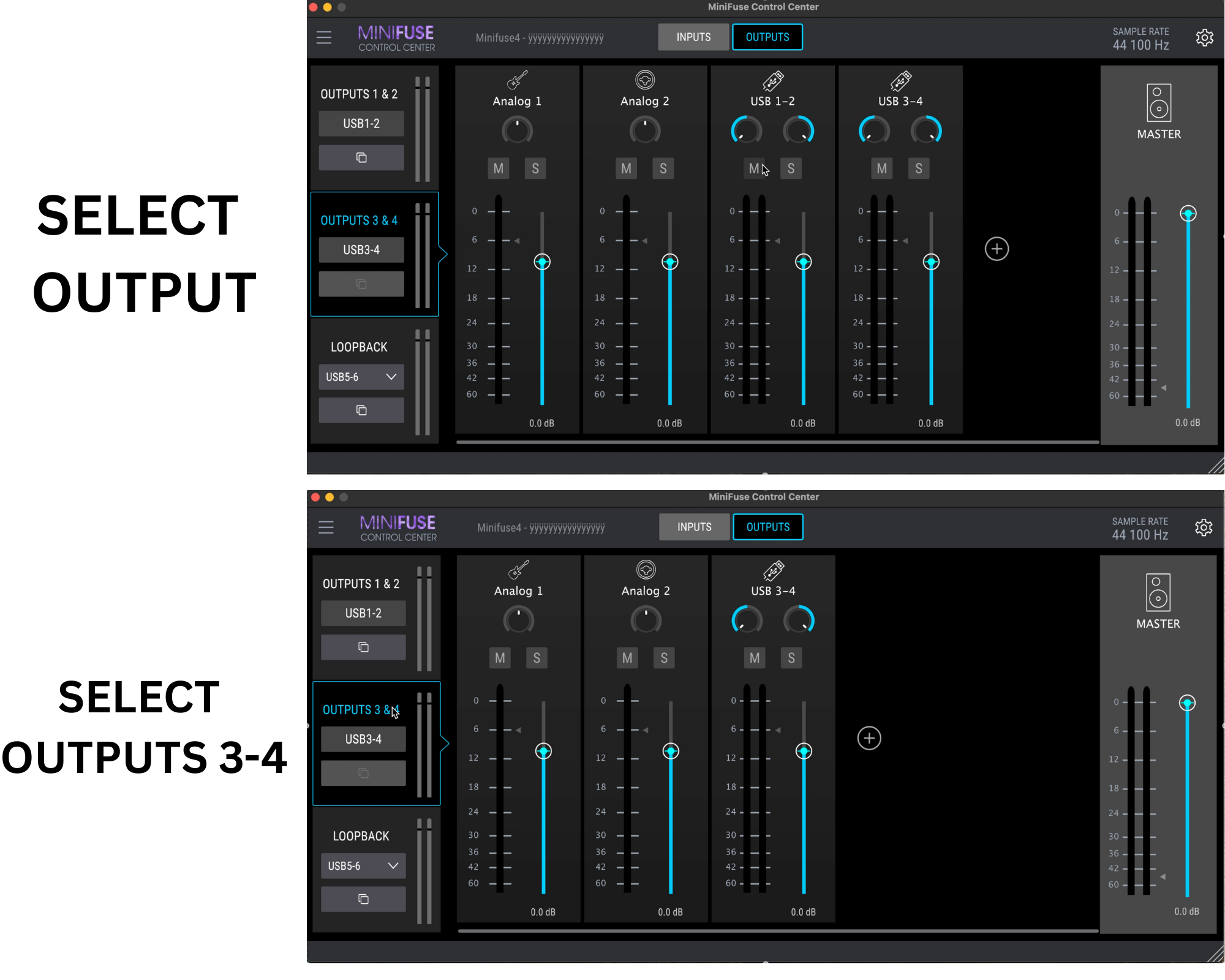

  2. Open MiniFuse Control Center, Select the 'Outputs' Tab at the top
  3. Select OUTPUTS 3&4 and on the right side of the mixer: Analog 1, Analog 2, USB 3-4

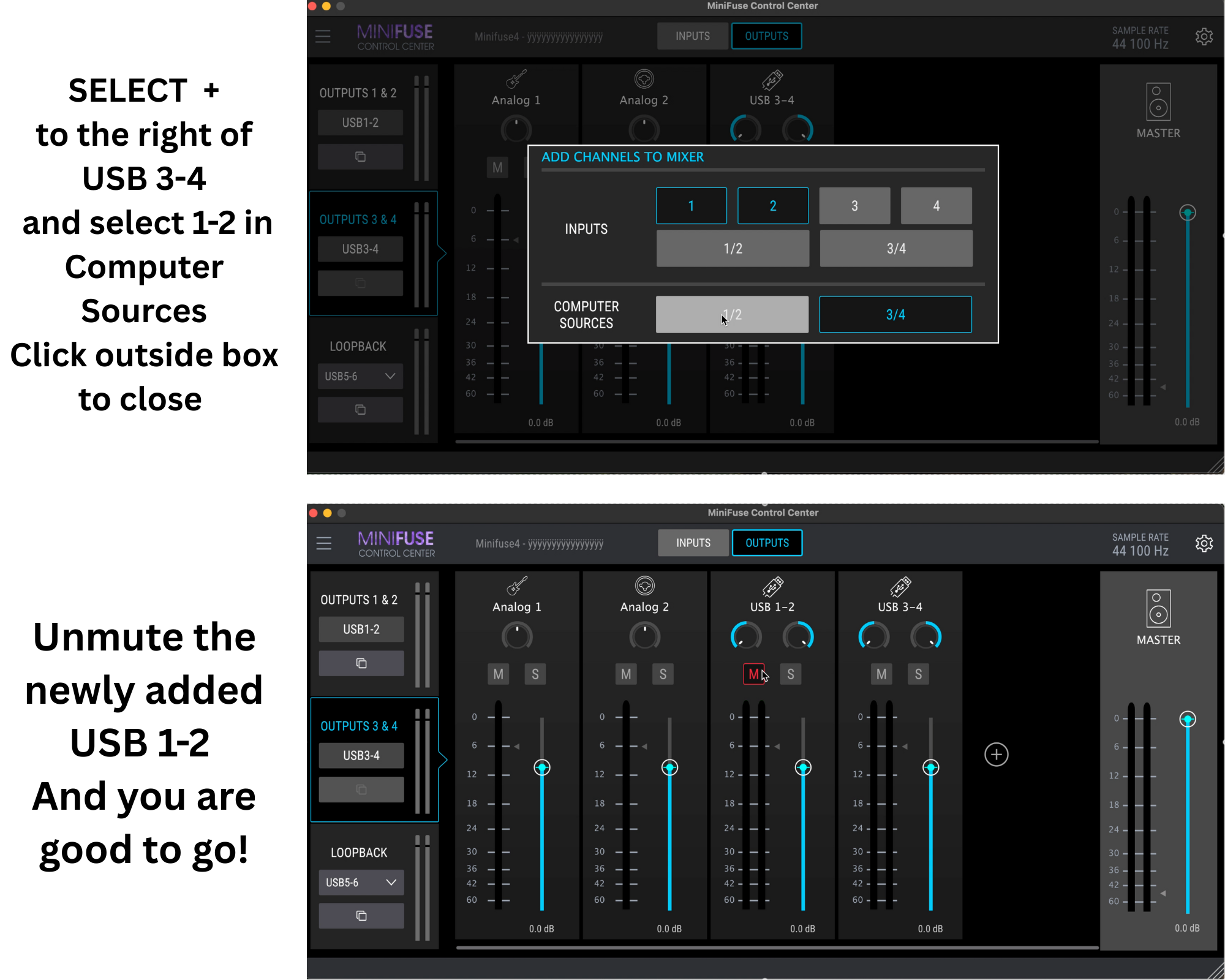

  4. Select the plus icon (+) to the right of USB 3-4 Level Mixer and a new window "Add Channels to Mixer" will open
  5. Select [1-2] in the COMPUTER SOURCES to add USB 1-2 (it will turn blue) and click outside "ADD CHANNELS TO MIXER' to close it
  6. Unmute the newly added USB 1-2 Level Mixer and you should now have audio coming out of both headphones

SELECT OUTPUT.png SELECT OUTPUT (1).png

How to Perform a Factory Reset

If you're stll experiencing an issue, a factory reset of the interface will clear up most issues.

  1. Turn off the Minifuse
  2. Press and hold "Instrument 2" and "48V"
  3. While holding the above buttons, press "A" to power the Minifuse 4 back on
  4. Once powered on, release all buttons
  5. The Minifuse Control Center will detect the interface is in a special update mode and prompt you select "Upgrade"
  6. Follow the on-screen instructions and wait for the update process to complete

    If any issues persists, try uninstalling and reinstalling the Minifuse Control Center



An article on Setup can be found HERE
